Negative Pressure Stretcher

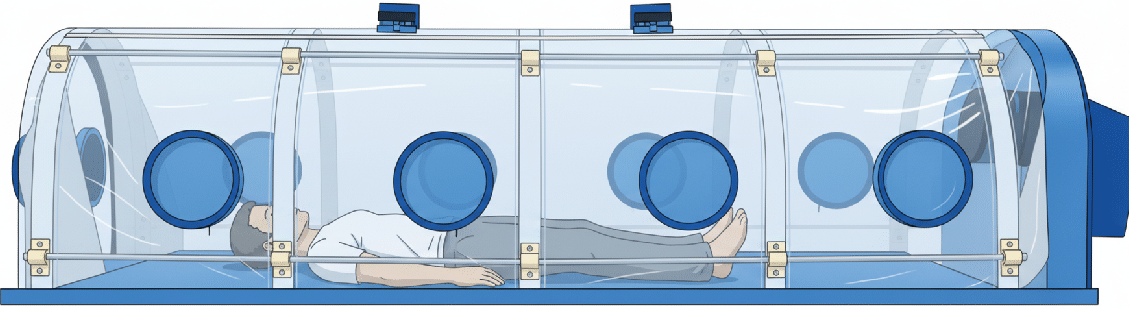

A biological isolation chamber (BIC) is a portable, sealed unit with a negative pressure system and HEPA filters, designed to safely contain and transport highly infectious patients or hazardous biological materials, preventing pathogen spread to the environment or staff by filtering contaminated air and maintaining lower internal pressure.
It acts like a mobile, high-tech containment bubble, often featuring glove ports for access and a structure that fits over stretchers for easy movement in emergency or clinical settings, crucial during outbreaks like COVID-19.
Applications:
- Inpatient Transport: Used in hospitals, emergency centres, and infectious disease clinics to move patients between departments or facilities
- Public Health Protection: Employed at airports, docks, and stations to isolate individuals suspected of carrying deadly respiratory viruses like SARS or COVID-19.
- Research: Smaller versions exist for research purposes, such as the XIC-3 Animal Isolation Chamber, which isolates anesthetized mice or rats.
Key Features
A sealed mobile containment unit that keeps infectious patients isolated and medical personnel protected throughout transport.
Negative Pressure Containment
HEPA Filtration at 99.999% Efficiency
Glove Ports for In-Transit Patient Access
Stretcher-Compatible & Transport-Ready
Technical Specifications
Portable biological containment engineered for safe infectious patient transport across ground, air, and clinical environments.
- Chamber Type: Negative pressure biological isolation chamber
- Negative Pressure: Up to -15 Pa within two minutes of power-on
- Pressure Mechanism: Internal fan exhausts air through HEPA filters, inward airflow prevents pathogen escape
- Alarm: Audio and visual alarm for internal pressure monitoring
- Filter Type: HEPA, disposable
- Filter Count: 3 units
- Filtration Efficiency: 99.999% for 0.3 µm particles, effective against viruses, bacteria, and biological particulates
- Airflow Rate: 67 ± 10% m³/hour
- Ventilation: ≥ 50 L/min
- Chamber Material: Foldable, highly transparent TPU film, full patient visibility
- Closure: Semi-sealed zipper system
- Glove Portals: Multiple portals on both sides for in-transit patient access and treatment
- Unfolded Size: 1900 × 560 × 500 mm
- Chamber Noise: ≤ 65 dB(A)
- Power Source: Rechargeable lithium battery
- Battery Life: Approximately 8–10 hours under normal operating conditions
- Patient Weight Capacity: Up to 120 kg
- Transport Compatibility: Ambulances, air ambulance (helicopter and fixed-wing), clinical internal transport
- Standard Accessories: Main chamber, 3× disposable HEPA filters, negative pressure generation system, PE gloves, battery and charger
Certifications & Compliance
Every MAAN product is validated at our DSIR-accredited R&D and Testing facility in Vadodara, Gujarat.
Applications
Deployed wherever the safe transport of highly infectious patients demands sealed, negative-pressure biocontainment.
Inpatient Transport
Public Health Protection
Emergency Medical Services
Medical Evacuation (MEDEVAC)
Pandemic & Outbreak Response
Research Applications
