Mass Decontamination Unit
Mass decontamination (decon) is the decontamination of large numbers of people, in the event of industrial, accidental, or intentional contamination by toxic, infective, caustic, polluted, or otherwise unhealthful or damaging substances.
Compact and quick to deploy, the inflatable Mass Decontamination Unit from MAAN defence helps during rapid response in a decontamination situation.
Fully inflatable, the Decontamination Unit can be set up in a matter of minutes, and will stay put without requiring any continuous inflation. With no mechanical framework the shelters are relatively lightweight to transport and compact to store.
The mass Decontamination shower is partitioned into three lanes (male, female & assisted casualty), with pre and post decon changing areas. Partitions are removable and doors can be linked together allowing the shower to be configured as a single, double or triple lane system.
Raised floor panels prevent contact with contaminated shower wash-off, which is collected in a chemically resistant sump. Sleeves for pumped extraction of contaminated water are included as standard.
Showers can be used on hard or soft standing, and guy ropes are provided for securing in position during inclement weather.
Key Features
Rapid large-scale decontamination, structured, flexible, and self-supporting without continuous inflation.
Three-Lane Configurable Layout
No Continuous Inflation Required
Raised Floor & Chemically Resistant Sump
High Throughput Capacity
Technical Specifications
High-capacity inflatable decontamination infrastructure, rapid to deploy, fully configurable, and built for sustained mass casualty response.
- Structure Type: Fully inflatable, self-supporting without continuous inflation
- Configuration: Single, double, or triple lane, configurable via removable partitions
- Lanes: Male lane / Female lane / Assisted casualty (central) lane
- Structure Size (3-lane): Width 17 ft × Length 22 ft
- Sections: Undressing area / Decontamination shower area / Drying and dressing area
- Surface: Hard or soft standing, guy ropes and pegs provided for inclement weather
- Shower Nozzles: On-demand, individually switchable on/off
- Windows: On internal shower doors with covers for privacy
- Assisted Lane Door: Zipped flap for transferring medical equipment
- Decontamination Capacity: More than 120 people per hour
- Water Storage: Minimum 50-minute storage capacity

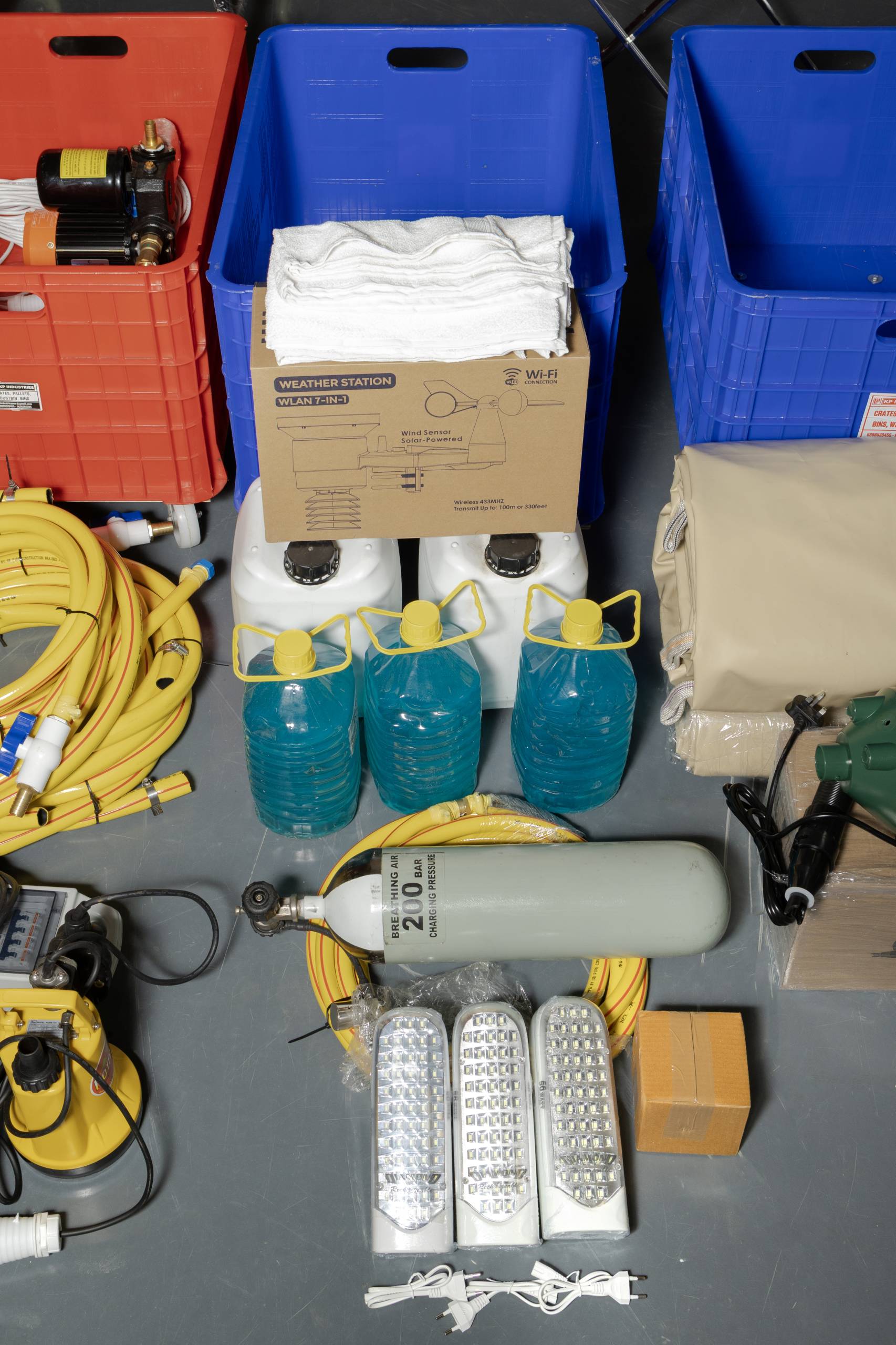

- Robust carrying and storage bag
- Guy ropes and tent pegs
- Air cylinder with regulator and 1m inflation hose
- Self-actuating water pumps
- Decontamination solution
- Flexible FR cables and field electric lines with waterproof plug and socket system
- Pedestal fan and rechargeable lights
- Hand shower, brush, liquid soap, towels, and linen rack
- Trash bins with lid
- Inflation and deflation valves
- Stretcher
- Privacy blinds
- Repair kit with puncture repair patches
- Electric inflator and hand pump
- Kit bag with galvanised ground fixing pegs and rubber mallet
- Discharge Rate: 50 to 100 litres per minute (min–max)
- Protection Rating: IP 68
- Height of Water Collection: 2mm
- Transport: Transportable by land (road and rail), sea, and air
- Provisions: Special provision for ambulatory and non-ambulatory victims
Certifications & Compliance
Every MAAN product is validated at our DSIR-accredited R&D and Testing facility in Vadodara, Gujarat.
Applications
Deployed wherever large-scale CBRN or hazmat contamination demands rapid, structured, and high-throughput decontamination.
CBRN Mass Casualty Response
NDRF & SDRF Disaster Response
Military Field Operations
Hospital & Medical Facility Support
Industrial Accident Response
Pandemic & Viral Endemic Response
Trusted by
MAAN Defence's innovative approach to indigenous manufacturing gives the Indian Armed Forces a reliable, cost-effective alternative to imports.
